Brand Name : Mingyuan
Model Number : JBZ-H
Certification : CE, SGS
Place of Origin : China
MOQ : 1 Set
Price : Negotiate
Payment Terms : T/T , L/C At Sight,, MoneyGram
Supply Ability : 250 Sets to 300 Sets Per Year
Delivery Time : 30 days
Packaging Details : Export Standard first packing with shrink film, Next Step packing by wooden case
Cup Size : 40ML to 330ML
Raw Material : PE coated Paper
Net Weight : 1500 KGS
Power Source : 220V or 380 V or Other require
Color : Blue Door White Frame
Output : 380/220v 50 Hz 4.8kw
Economical Disposable Paper Cup Making Machine High Performance 50 - 60 Cups Per Min
Quick Detail:
Paper Cup Size | 3 oz-12 oz (mold exchangeable) |
Speed | 45-55 Pcs/minute |
Suitable paper weight | 140-350gsm |
Net Weight | 1500KG |
Warranty | 2 years |
Usage | Hot drink and Cold drink |
after-sales service | 24 Hours Online Service, Provide Operation CD and Manual, Engineers available to service machinery overseas |
Description:
Single PE coated paper cup machine is the ideal equipment for producing single-sided coated paper cups. This paper cup forming machine has unique design with a guard cover for heat dissipation that ensures longer life span. It features easy operation, stable performance, small occupying area, low consumption and high efficiency. It can run stably with little noise. As an automatic paper cup making machine, this single PE coated paper cup machine runs lots of procedures including automatic paper feeding, side sealing, oiling, bottom punching, bottom pre-heating, bottom folding, bottom knurling, top curling and cup discharging.
Specification
Paper Cup Size Range | 1.5 to 12 oz (40 to 330 ml) |
Production Speed | 45 to 55 pcs/min |
Paper Cup Top Diameter | Min. 45 mm to Max. 104 mm |
Paper Cup Bottom Diameter | Min. 35 mm to Max. 75 mm |
Paper Cup Height | Min. 35 mm to Max. 110 mm |
Raw Material | 170 to 280 gsm, Single PE Coated Paper |
General Power | 4.8 kW |
Electricity | 380 V, 3 Phases or 220V, 1 Phase |
Weight | 1500 kg |
Measurement | 2.6 m × 1.22 m × 1.7 m |
Why Choose Us
♦ Advantages
1. Quality assurance both for our products and service for after-sales.
2. Favorable price.
3. Great variety of products.
4. Attractive design.
5. Environment Friendly Technology
6. OEM and ODM service provided.
Maintenance and Packing
For maintenance, users should pay attention to the lubrication of paper cup forming machine. For packing, we make use of wooden cases, which is convenient for sea transportation.
After service
1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer in charge of the salary, traffic fee, boarding and lodging, communication.
4. We supply the consumable spare parts for free for two years use

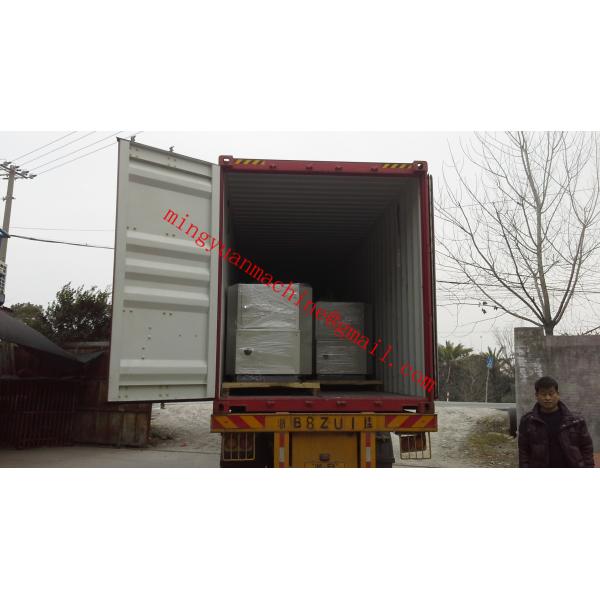

Loading Machine
![]() |
Economical Disposable Paper Cup Making Machine High Performance 50 - 60 Cups Per Min Images |
